C++ example for Builder Design Pattern

The Builder Design Pattern separates the construction of a complex object from its representation so that the same construction process can create different representations. This design pattern is not used very often in practice.

The following is an example of Builder Design Pattern:

//Program tested on Microsoft Visual Studio 2008 - Zahid Ghadialy
//Builder is part of Creational Patterns
//Creational Patterns deal with initializing and configuring classes and objects
//Builder Separates object construction from its representation

//We will take an example of creating Vehicles using Vehicle class.
//The VehicleBuilder is the abstract interface for creating the parts of Vehicle
//Different ConcreteBuilder classes are used to construct the final Product
//The Shop class is the Director that defines the sequence of construction
//The final product, Vehicle class shows the different type of Vehicle
//constructed  and consists of different parts that can be assembles in final result

#include <iostream>
#include <string>
#include <map>

using namespace std;

//The 'Product' class
class Vehicle
{
public:
  Vehicle(const string& vehicleType) : vehicleType_(vehicleType)
  {
  }

  void SetPart(const string& partName, const string& partValue)
  {
    parts_[partName] = partValue;
  }

  const string& GetpartValue(const string& partName)
  {
    map<string, string>::const_iterator it;
    it = parts_.find(partName);
    if(it != parts_.end())
      return it->second;
    else
    {
      parts_[partName] = "Not found";
      return parts_[partName];
    }
  }

  void const Show(void)
  {
    cout << "\n---------------------------" << endl;
    cout << "Vehicle Type : " << vehicleType_ << endl;
    cout << "Frame        : " << parts_["frame"] << endl;
    cout << "Engine       : " << parts_["engine"] << endl;
    cout << "#Wheels      : " << parts_["wheels"] << endl;
    cout << "#Doors       : " << parts_["doors"] << endl;
  }

private:
  Vehicle(); //Default constructor is private so not allowed to be used
  string vehicleType_;
  map<string, string> parts_;
};

//Create an abstract 'Builder' class
class VehicleBuilder
{
public:
  //Default constructor wont work as pointer needs init
  VehicleBuilder()
  {
    vehicle = NULL;
  }
  //Destructor made virtual
  virtual ~VehicleBuilder()
  {
    if(vehicle)
    {
      delete vehicle;
      vehicle = NULL;
    }
  }
  const Vehicle& getVehicle(void)
  {
    return *vehicle;
  }
  virtual void BuildFrame() = 0;
  virtual void BuildEngine() = 0;
  virtual void BuildWheels() = 0;
  virtual void BuildDoors() = 0;
protected:
  Vehicle* vehicle;
};

//The Concrete 'Builder' #1 class
class MotorCycleBuilder : public VehicleBuilder
{
public:
  MotorCycleBuilder()
  {
    vehicle = new Vehicle("MotorCycle");
  }
  void BuildFrame()
  {
    vehicle->SetPart("frame", "MotorCycle Frame");
  }
  virtual void BuildEngine()
  {
    vehicle->SetPart("engine", "500 cc");
  }
  virtual void BuildWheels()
  {
    vehicle->SetPart("wheels", "2");
  }
  virtual void BuildDoors()
  {
    vehicle->SetPart("doors", "0");
  }
};

//The Concrete 'Builder' #2 class
class CarBuilder : public VehicleBuilder
{
public:
  CarBuilder()
  {
    vehicle = new Vehicle("Car");
  }
  void BuildFrame()
  {
    vehicle->SetPart("frame", "Car Frame");
  }
  virtual void BuildEngine()
  {
    vehicle->SetPart("engine", "2500 cc");
  }
  virtual void BuildWheels()
  {
    vehicle->SetPart("wheels", "4");
  }
  virtual void BuildDoors()
  {
    vehicle->SetPart("doors", "4");
  }
};

//The Concrete 'Builder' #3 class
class ScooterBuilder : public VehicleBuilder
{
public:
  ScooterBuilder()
  {
    vehicle = new Vehicle("Scooter");
  }
  void BuildFrame()
  {
    vehicle->SetPart("frame", "Scooter Frame");
  }
  virtual void BuildEngine()
  {
    vehicle->SetPart("engine", "50 cc");
  }
  virtual void BuildWheels()
  {
    vehicle->SetPart("wheels", "2");
  }
  virtual void BuildDoors()
  {
    vehicle->SetPart("doors", "0");
  }
};

//The 'Director' class
class Shop
{
public:
  void Construct(VehicleBuilder* vehicleBuilder)
  {
    vehicleBuilder->BuildFrame();
    vehicleBuilder->BuildEngine();
    vehicleBuilder->BuildWheels();
    vehicleBuilder->BuildDoors();
  }
};

int main()
{
  VehicleBuilder *builder = NULL;

  Shop shop; //New Instance of class created locally.

  //Construct vehicle 1 and destroy instance when done
  builder = new ScooterBuilder();
  shop.Construct(builder);
  (const_cast<Vehicle&>(builder->getVehicle())).Show();
  delete builder;

  //Construct vehicle 2 and destroy instance when done
  builder = new CarBuilder();
  shop.Construct(builder);
  (const_cast<Vehicle&>(builder->getVehicle())).Show();
  delete builder;

  //Construct vehicle 3 and destroy instance when done
  builder = new MotorCycleBuilder();
  shop.Construct(builder);
  (const_cast<Vehicle&>(builder->getVehicle())).Show();
  delete builder;

  return 0;
}

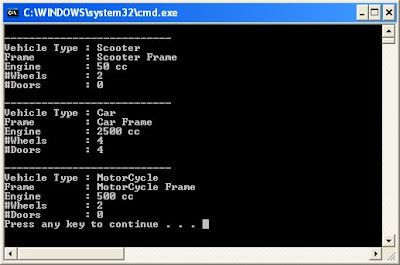

The output is as follows:

For more details please see: http://www.dofactory.com/Patterns/PatternBuilder.aspx
